KEMPER AIRDOME - STATIONARY HALL VENTILATION (PRICE: UPON REQUEST)

AirDome

Stationary hall ventilation with 20,000 m³/h airflow – ideal for permanent use in air domes and inflatable halls

The AirDome ensures clean air in production facilities and workshops with changing dust and fume sources – ideal where point extraction is not sufficient. As a space-saving powerhouse, it delivers an extreme extraction capacity of 20,000 m³/h on just 1.5 m² of floor space. With automatic filter cleaning and modern EC technology, it operates energy-efficiently, quietly, and with minimal maintenance. Thanks to displacement ventilation in line with safety authority recommendations, optimised airflow, 360° air outlet, and contamination-free dust disposal, the tower reliably protects both people and machines – with minimal footprint and no need for ducting.

APPLICATIONS:

• Workshops where local exhaust ventilation is not possible
• To complement local exhaust ventilation systems
• Environments with changing sources of smoke and dust
• Workstations, Workshops, Logistic and distribution centres
• Energy-saving general ventilation

BENEFITS:

• State-of-the-art EC technology adapts to demand and therefore runs particularly energy-efficiently - saves operating costs and protects the environment
• Optimum capture height - extraction takes place at the exact height at which the welding fumes accumulate
• Space-saving, innovative design - minimum footprint with maximum performance
• Status check via large illuminated display (optional) - For easy monitoring of the operating status
• A space-saving miracle with an extreme 20,000 m³/h extraction capacity on a 1.5 m² footprint

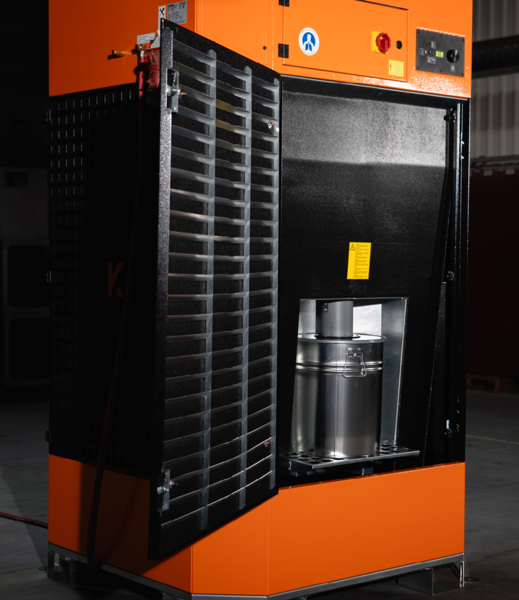

• Extremely easy to maintain thanks to maintenance-free fans and convenient access thanks to the large maintenance door
• Extremely high volume flow - ideal for demanding applications
• Low risk potential due to foreign bodies
• Constant air flow guarantees a constant level of clean air
• Safe transport and easy installation thanks to lifting eyes & forklift pockets
• Minimization of heating costs due to air recirculation and air distribution
• Enormously long filter lifetime due to optimised air flow
• Increased safety with contamination-free dust disposal
• Cost-effective installation or retrofit, as no ductwork is needed
• Permanent operation by means of automatic dust disposal in dust collection bin

PROPERTIES:

• EC fans with IE5 motors exceed legal efficiency requirements and set new standards in energy efficiency
• Automatic filter cleaning
• Available in different voltage versions
• Hardly any air turbulence enables work in the immediate vicinity without draughts
• Lifting eyes & forklift pockets
• Optimised air routing ensures low noise levels and increased efficiency
• Effective baffle plates for spark pre-separation
• Contamination -free dust disposal in one-way containers.
• Displacement flow principle, recommended by health and safety bodies

MODE OF OPERATION:

• Intake of ambient air via built-in EC fans
• The filtered, clean air exits at the bottom of the system with low momentum in a 360° radius
• The warm cleaned air directs the welding smoke again towards the inlet grills and so, a slow air circulation and at the workstations is created.
