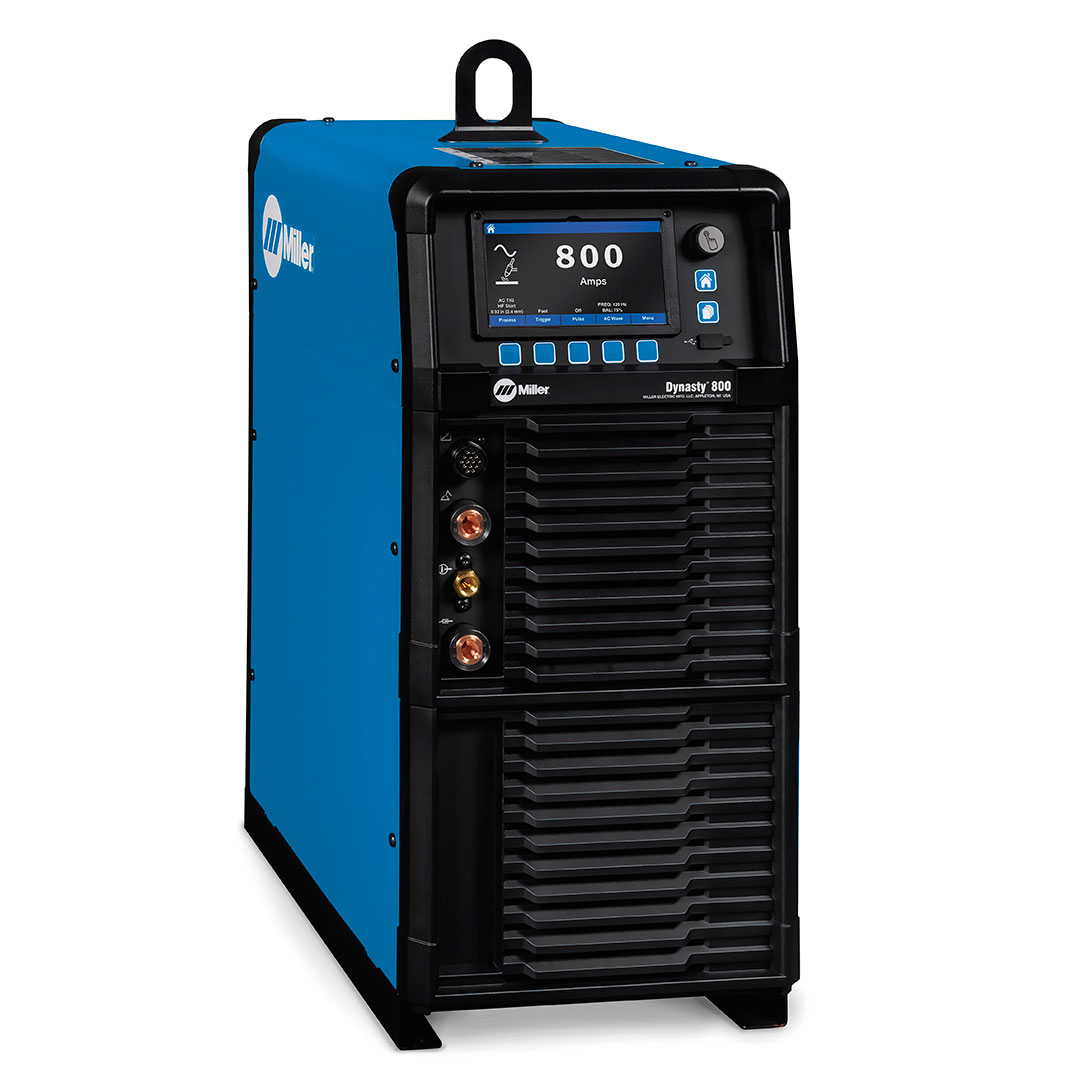

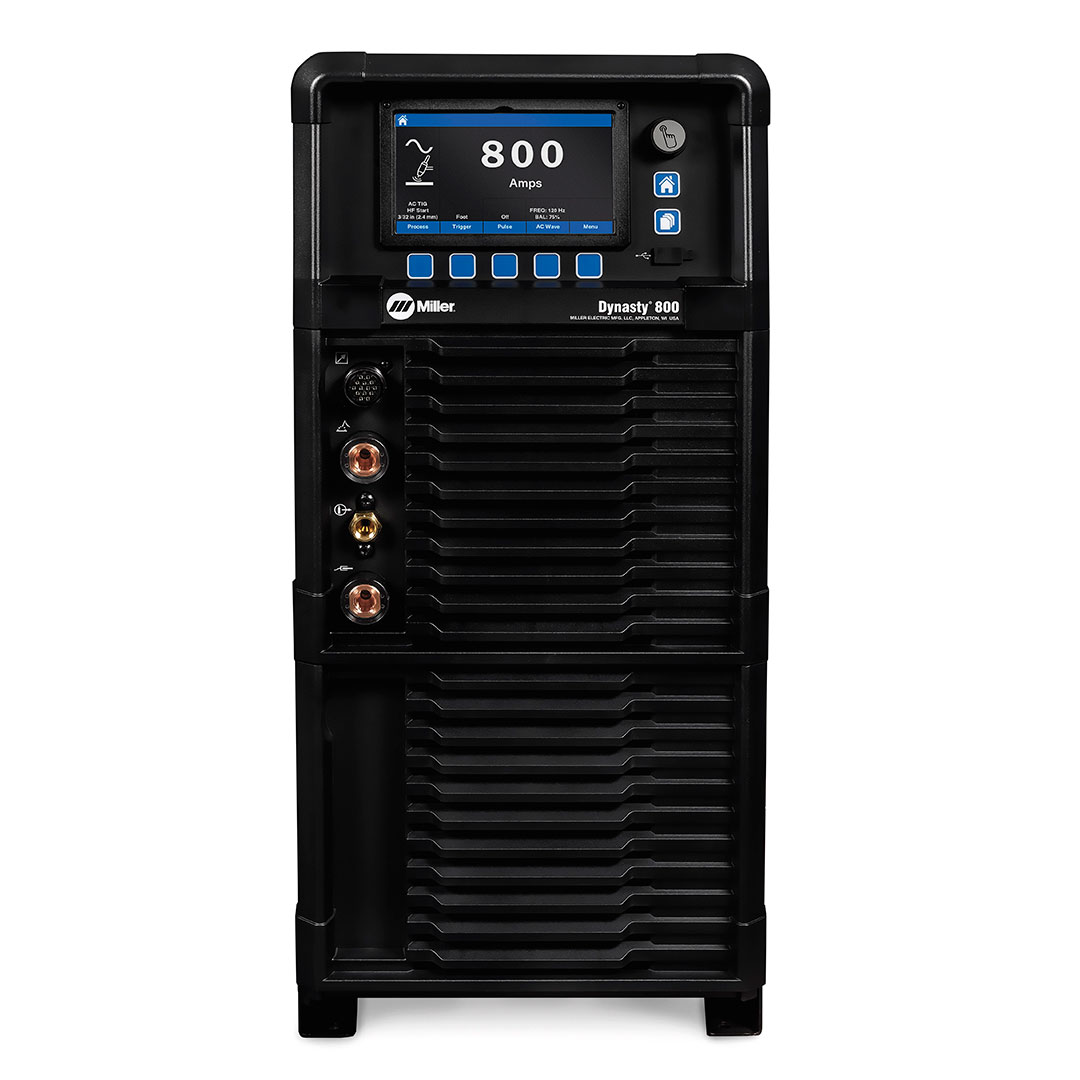

Dynasty® 800 TIG Welding Machine
The Dynasty 800 is a powerful power source capable of welding up to 25.4 mm (1") aluminum. Experience unfailing precision arc performance paired with a state-of-the-art, user-friendly interface that puts advanced capabilities at your fingertips.
Features:
- Easy-to-understand interface with 7-inch LCD display: Ensures proper machine setup and parameter selection. Informative on-screen explanations and dynamic images enhance the parameter selection process.
- QuietPulse™ : Activate QuietPulse™ by selecting sine or triangular waveshape to reduce audible noise.
- Blue Lightning™ Provides more consistent high-frequency (HF) arc starts and greater reliability compared to traditional arc starters.
- Lift-Arc™ Provides AC or DC arc initiation without the use of high frequency.
- Auto-Line™ power management technology: Allows for any input voltage hookup (208–600 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
- Program memory: Allows easy naming, saving and recalling of favorite weld settings. Deliver more productivity by eliminating the need to manually set the parameters & Deliver consistent quality by welders of all skills
- Pro-Set™ Eliminates the guesswork when setting weld parameters.
- Locks and limits: Provides control of weld parameter ranges minimizing deviation from the welding procedure specification (WPS).
- USB Front panel port provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next. Visit MillerWelds.com/TIGSoftware for the latest software updates and expansions.
- Cooler Power Supply (CPS) is an integrated 120-volt dedicated-use receptacle for the Coolmate™ 3.5.
- Cooler-On-Demand™ Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.
Title: Dynasty® 800
Industries Interests: Precision fabrication Heavy fabrication Pipe and tube fabrication Aerospace Aluminum ship repair Anodized aluminum fabrication
Weldable Metals: Thin to thick material.
Steel, Stainless, Aluminium Special Alloys
Input Voltage: 208–600 V
Input Phase: 3-phase power
Input Hz: 50/60 Hz
Amperage Range: 5–800 A
Current Type: AC/DC
Rated Output: 600 A at 44 V, 60% duty cycle
Max Open Circuit Voltage: 75 VDC
Weld Output: CC
Net Width: 352 mm
Net Height: 870 mm
Net Length: 618 mm
Net Weight: 91 kg
Warranty: 3 Years Miller’s True Blue Warranty
