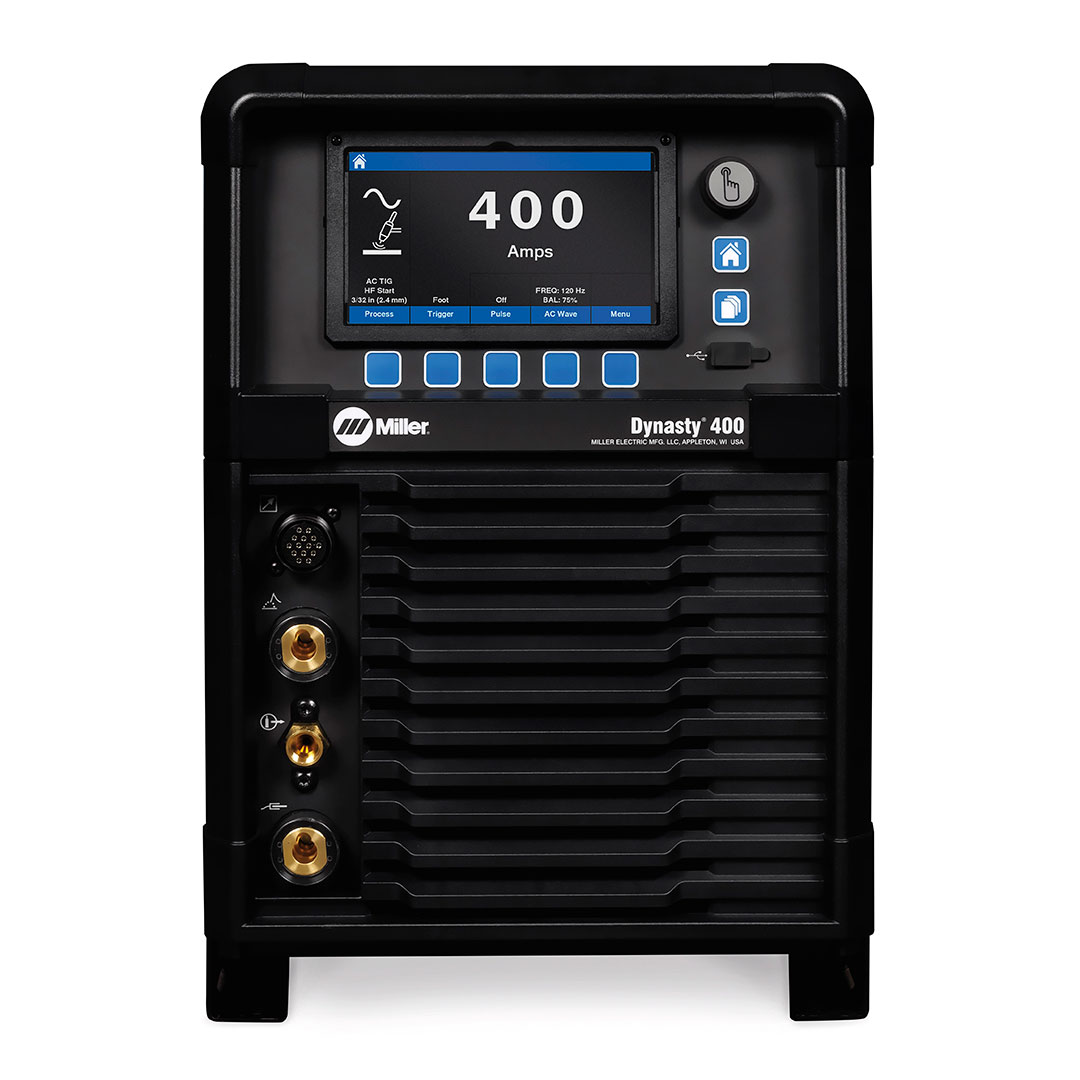

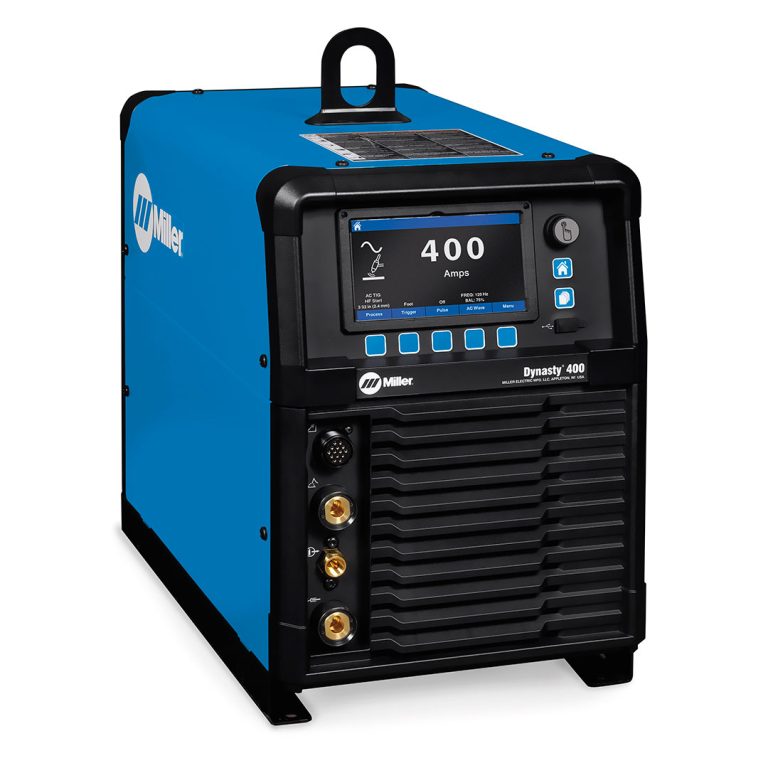

Dynasty® 400 TIG Welding Machine
Reimagined for Your Pursuit of Perfection. Experience unfailing precision arc performance paired with a state-of-the-art, user-friendly interface that puts advanced capabilities at your fingertips.
Features:
- Easy-to-understand interface with 7-inch LCD display Ensures proper machine setup and parameter selection. Informative on-screen explanations and dynamic images enhance the parameter selection process.
- QuietPulse™ Activate QuietPulse™ by selecting sine or triangular waveshape to reduce audible noise.
- Blue Lightning™ Provides more consistent high-frequency (HF) arc starts and greater reliability compared to traditional arc starters.
- Lift-Arc™ Provides AC or DC arc initiation without the use of high frequency.
- Auto-Line™ power management technology Allows for any input voltage hookup (208–600 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
- Program memory Allows easy naming, saving and recalling of favorite weld settings. Deliver more productivity by eliminating the need to manually set the parameters Deliver consistent quality by welders of all skills
- Pro-Set™ Eliminates the guesswork when setting weld parameters.
- Locks and limits Provides control of weld parameter ranges minimizing deviation from the welding procedure specification (WPS).
- USB Front panel port provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next. Visit MillerWelds.com/TIGSoftware for the latest software updates and expansions.
- Cooler Power Supply (CPS) is an integrated 120-volt dedicated-use receptacle for the Coolmate™ 3.5.
- Cooler-On-Demand™ Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.
Title: Dynasty® 400
Industries Interests: Precision fabrication
Heavy fabrication
Pipe and tube fabrication
Aerospace
Aluminum ship repair
Anodized aluminum fabrication
Weldable Metals: Thin to thick material.
Steel, Stainless, Aluminium
Special Alloys
Input Voltage: 208–600 V
Input Phase: 3-phase power or 1-phase power
Input Hz: 50/60 Hz
Amperage Range: 3–400 A
Current Type: AC/DC
Rated Output: 300 A at 32 V, 60% duty cycle
Max Open Circuit Voltage: 75 VDC
Weld Output: CC
Net Width: 352 mm
Net Height: 613 mm
Net Length: 559 mm
Net Weight: 57 kg
Warranty: 3 Years Miller’s True Blue Warranty
