£1,859.00 - £1,974.00
£1,859.00 (Exc VAT)
P223TX135GF4£1,918.00 (Exc VAT)
P223TX135GF8£1,874.00 (Exc VAT)
P223TX165GF4£1,936.00 (Exc VAT)
P223TX165GF8£1,892.00 (Exc VAT)
P223TX165GS4£1,962.00 (Exc VAT)
P223TX165GS8£1,876.00 (Exc VAT)
P223TX225G4£1,949.00 (Exc VAT)
P223TX225G8£1,894.00 (Exc VAT)
P223TX225GS4£1,974.00 (Exc VAT)

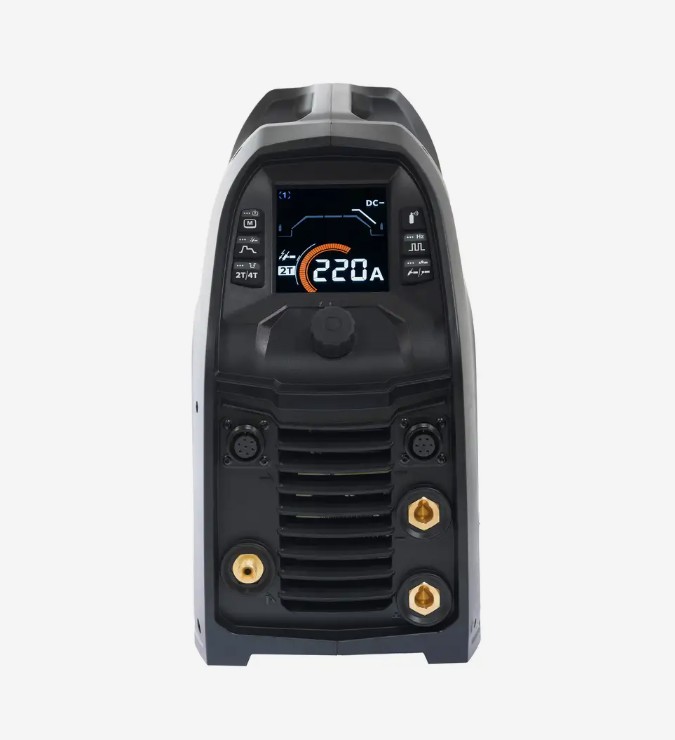

P223TX225GS8The Minarc T 223 DC, 1ph 110V / 230V, is a portable, small, but mighty TIG welding machine designed for welders on the go. With a powerful output of 220 amps, this portable welding machine delivers precise DC TIG and MMA performance and is protected with a durable and stylish molded casing. Kemppi's professionals design, engineer, build, and test every Minarc T DC TIG welding power source in Finland, ensuring reliable Finnish welding quality for every weld.
This multi-voltage TIG welder is perfect for industrial workshops and site welding applications. It uses PFC technology for energy-efficient operation. Standard features include pre- and post-flow gas control, slope time regulation, memory channels, and power adjustments that can be made using optional remote controls.

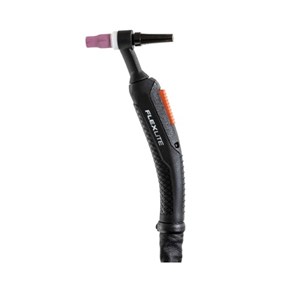

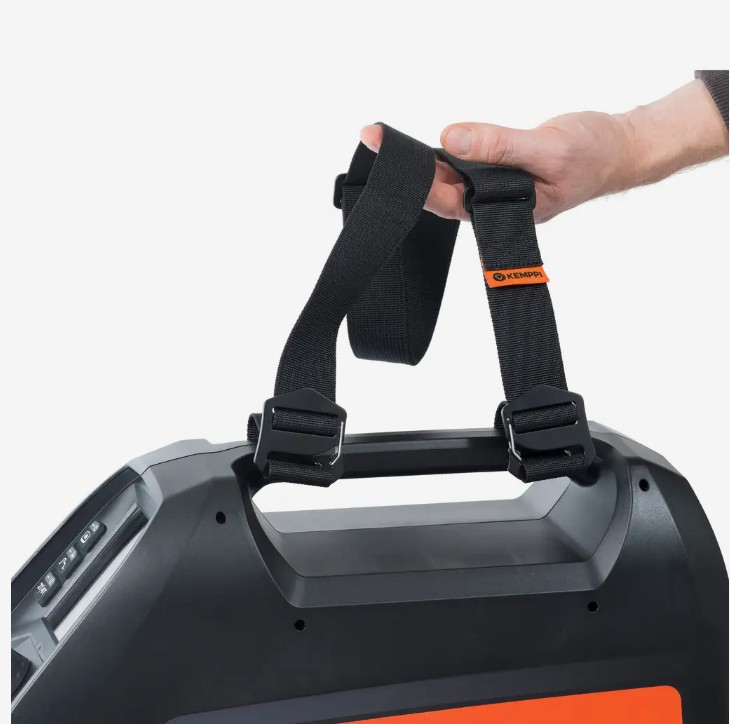

The Minarc T 223 DC MLP models also offer a pulse function and 'Minilog' control, which allows welders to select preset power levels during welding directly from the standard torch trigger switch. Delivery packages come with the DC TIG power source, a carrying strap, an earth return cable, a gas hose, and a Flexlite TX welding TIG torch (available in 4m or 8m lengths).
Main Features:
- Mains connection voltage 220...240 V ±10 %
- Mains connection voltage (MV low range) 110...120 V ±10 %
- Mains connection phases 1~50/60 Hz
- Mains connection cable type 3G, H07RN-F
- Mains connection cable size 2.5 mm²
- Rated maximum input power [S1max] 5.5 kVA
- Mains fuse 16 A
- Mains fuse (@MV low range) 16 A
- Idle power 10 W
- Output, duty cycle % at rated max. current, TIG 20 %
- Output at +40 °C, rated max current, TIG 220 A
- Output at +40 °C, 60% TIG 170 A
- Output at +40 °C, 100% TIG 140 A
- Output, duty cycle % at rated max. current, MMA 25 %
- Output at +40 °C, rated max current, MMA 170 A
- Output at +40 °C, 60% MMA 140 A
- Output at +40 °C, 100% MMA 120 A
- Output, duty cycle % at rated max. current, TIG (@MV low range) 20 %
- Output at +40 °C, rated max current, TIG (@MV low range) 130 A
- Output at +40 °C, 60% TIG (@MV low range) 110 A
- Output at +40 °C, 100% TIG (@MV low range) 90 A
- Output, duty cycle % at rated max. current, MMA (@MV low range) 20 %
- Output at +40 °C, rated max current, MMA (@MV low range) 75 A
- Output at +40 °C, 60% MMA (@MV low range) 70 A
- Output at +40 °C, 100% MMA (@MV low range) 60 A
- Power factor at rated maximum current [λ] 1
- Efficiency at rated maximum current [η] 85 %
- EMC class A
- Welding connection type R1/4
- Wired communication type Analog
- Recommended minimum generator power [Sgen] 8 kVA
- Degree of protection (fully installed) IP23
- External dimensions, length 461 mm
- External dimensions, width 202 mm
- External dimensions, height 367 mm
- Weight without accessories 9.6 kg
- Standards EN IEC 60974-1, -3, -10, IEC 61000-3-12
