£2,613.00 - £2,710.00
£2,613.00 (Exc VAT)
P23T225G4£2,687.00 (Exc VAT)
P23T225G8£2,631.00 (Exc VAT)
P23T225GS4£2,710.00 (Exc VAT)
P23T225GS8WELD AND CLEAN WITH ONE TIG MACHINE
Minarc T 223 ACDC GM is an entirely new 220 A single-phase AC/DC TIG welding machine with built-in electrolytic weld cleaning capability. This portable multi-voltage welding machine allows you to perform high-quality TIG welding and professional weld cleaning with one machine.

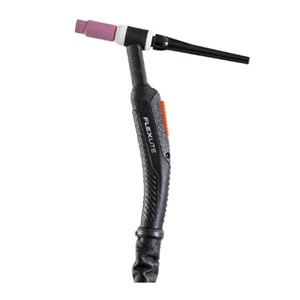

Take the Minarc T 223 ACDC GM anywhere on-site and save time by completing and finishing perfect welds in one spot. The new MAX WeldClean electrolytic cleaning process is simple and easy to use. It just takes a moment to convert your TIG torch to cleaning mode, where an efficient combination of electric current and phosphoric acid quickly removes oxidation and discoloration around the weld, delivering perfectly clean welds.
Powerful and versatile, the Minarc T 223 ACDC GM TIG welding machine comes with important features like the Auto Pulse function, AC frequency control, memory channels, and convenient remote control options. A large color display with impact protection and a clear user interface make choosing settings in a wide range of light conditions easy.
- Mains connection voltage 220...240 V ±10 %
- Mains connection voltage (MV low range) 110...120 V ±10 %
- Mains connection phases 1~50/60 Hz
- Mains connection cable type 3G, H07RN-F
- Mains connection cable size 2.5 mm²
- Rated maximum input power [S1max] 5.5 kVA
- Mains fuse 16 A
- Mains fuse (@MV low range) 16 A
- Idle power 10 W
- Output, duty cycle % at rated max. current, TIG 20 %
- Output at +40 °C, rated max current, TIG 220 A
- Output at +40 °C, 60% TIG 170 A
- Output at +40 °C, 100% TIG 160 A
- Output, duty cycle % at rated max. current, MMA 35 %
- Output at +40 °C, rated max current, MMA 170 A
- Output at +40 °C, 60% MMA 130 A
- Output at +40 °C, 100% MMA 110 A
- Output, duty cycle % at rated max. current, TIG (@MV low range) 40 %
- Output at +40 °C, rated max current, TIG (@MV low range) 130 A
- Output at +40 °C, 60% TIG (@MV low range) 110 A
- Output at +40 °C, 100% TIG (@MV low range) 90 A
- Output, duty cycle % at rated max. current, MMA (@MV low range) 40 %
- Output at +40 °C, rated max current, MMA (@MV low range) 90 A
- Output at +40 °C, 60% MMA (@MV low range) 70 A
- Output at +40 °C, 100% MMA (@MV low range) 60 A
- Power factor at rated maximum current [λ] 1
- Efficiency at rated maximum current [η] 83 %
- EMC class A
- Voltage supply for cooling unit 220...240 V
- Welding connection type R1/4
- Wired communication type Analog
- Recommended minimum generator power [Sgen] 8 kVA
- Degree of protection (fully installed) IP23
- External dimensions, length 520 mm
- External dimensions, width 250 mm
- External dimensions, height 379 mm
- Weight without accessories 16.8 kg
- Standards EN IEC 60974-1, -3, -10 IEC 61000-3-1- 2
