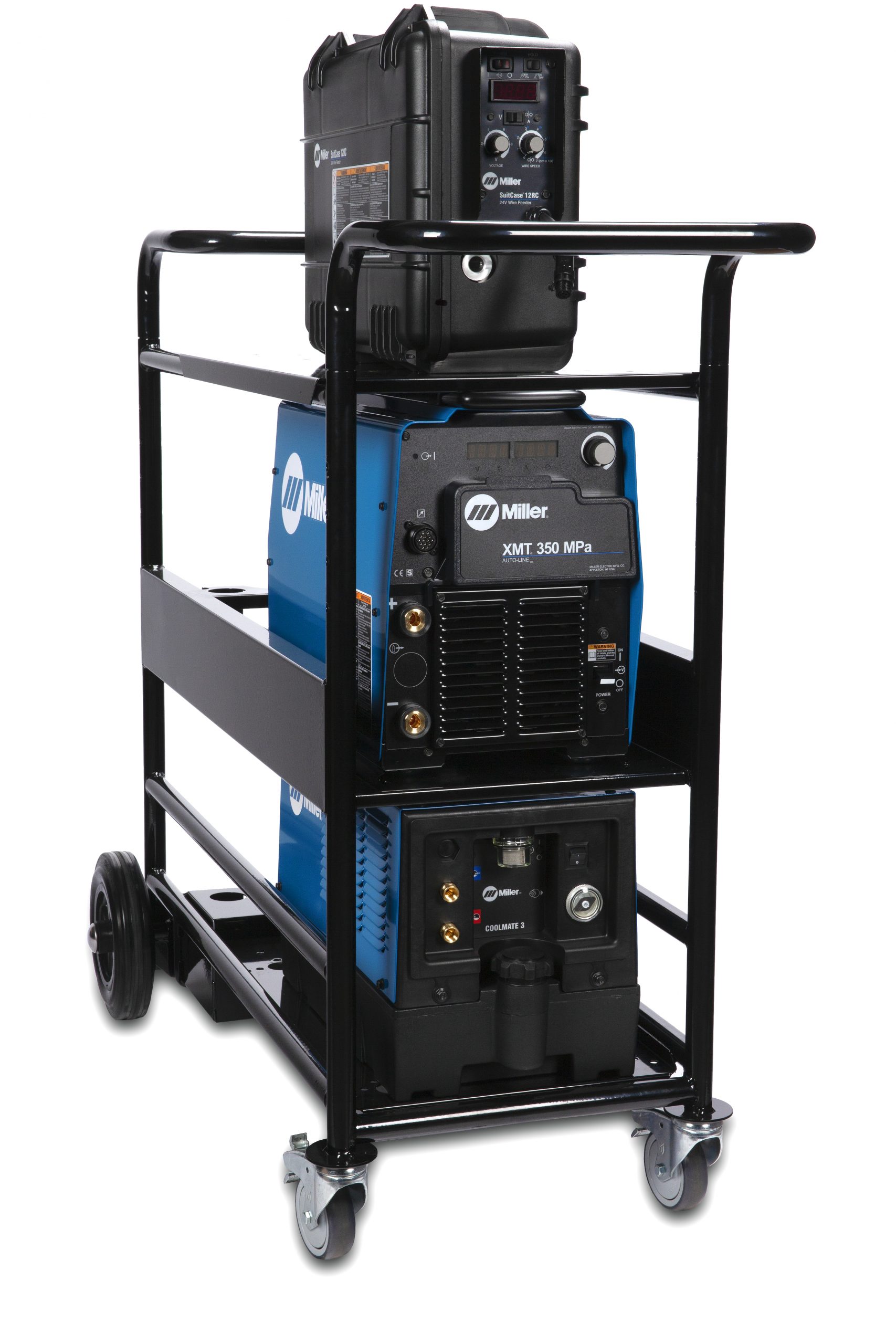

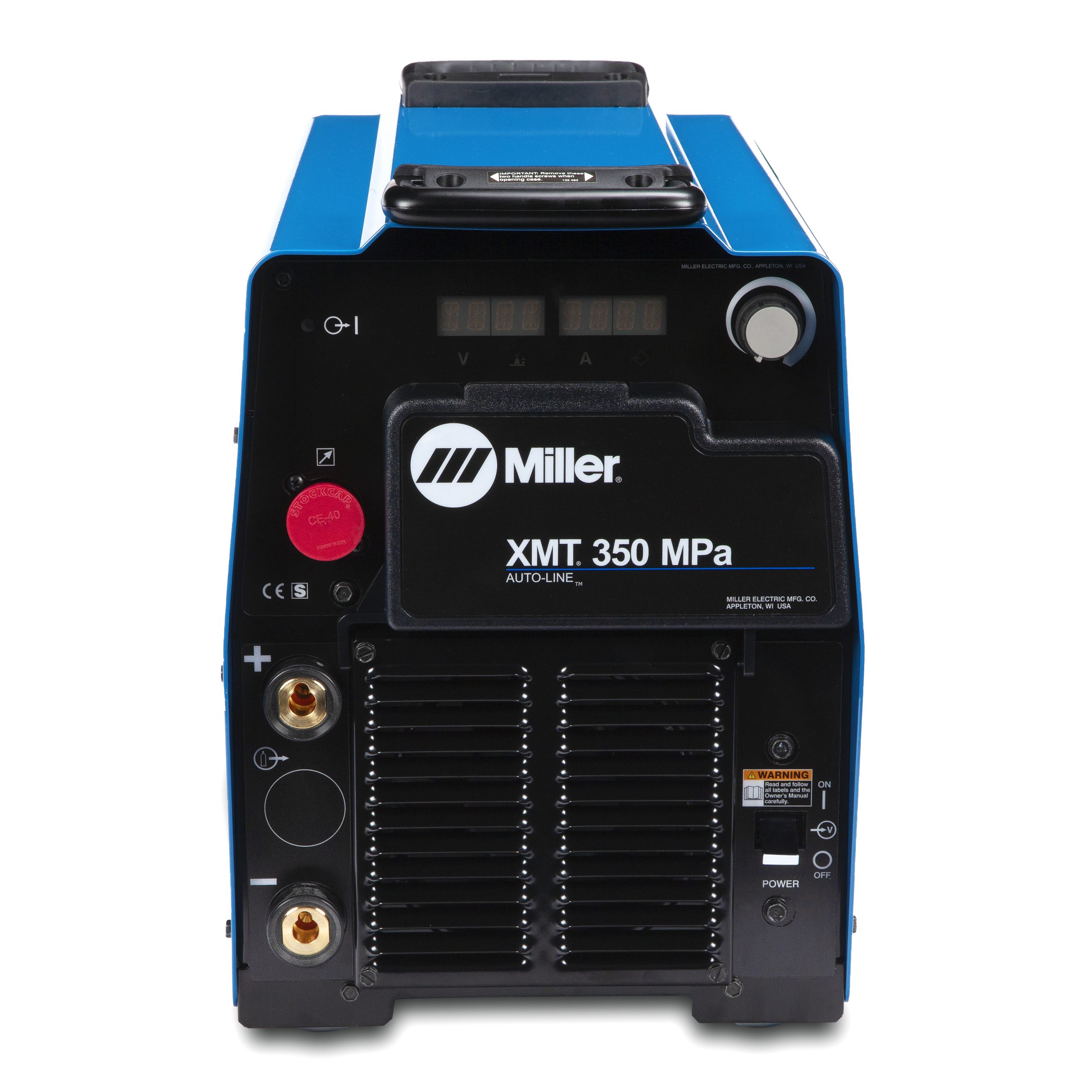

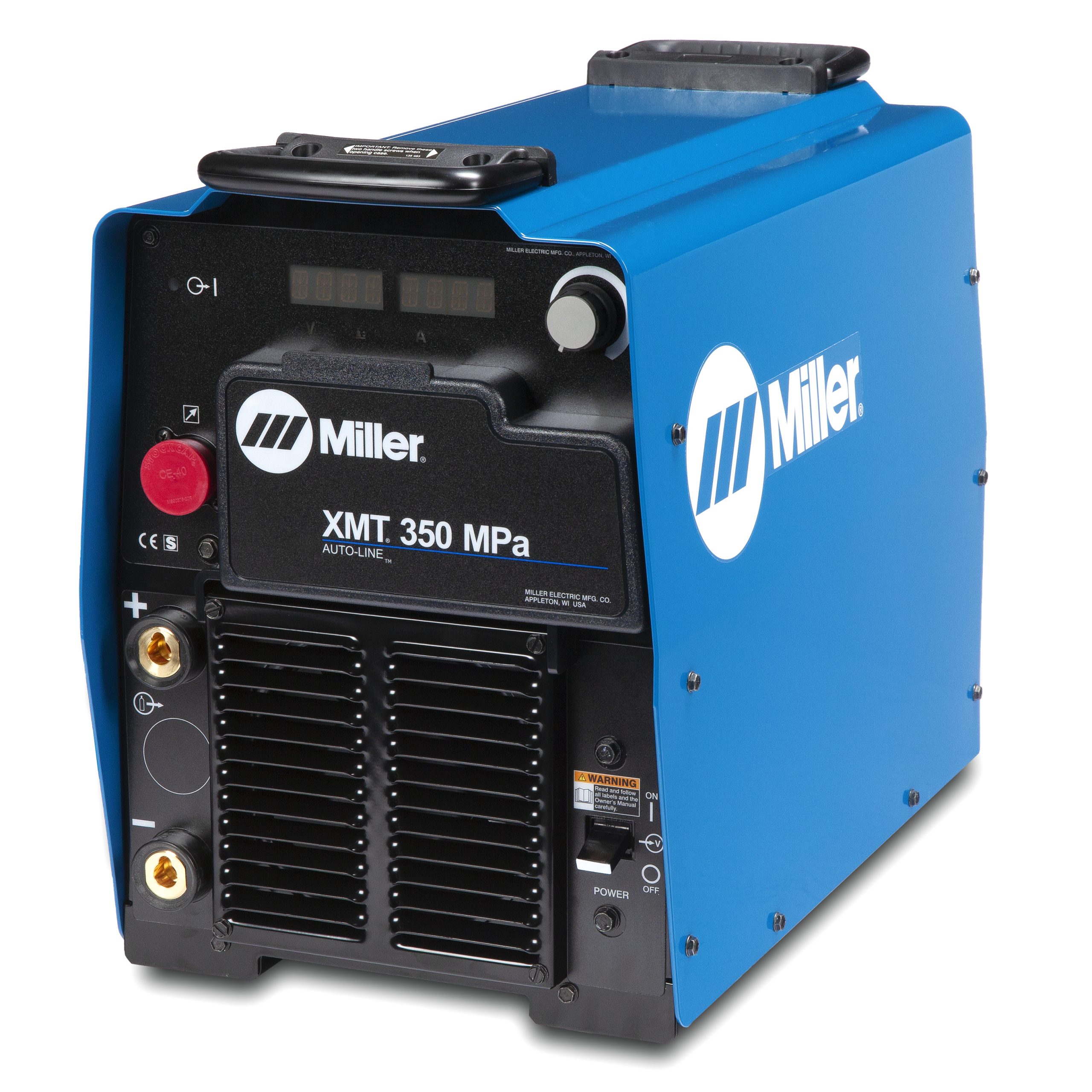

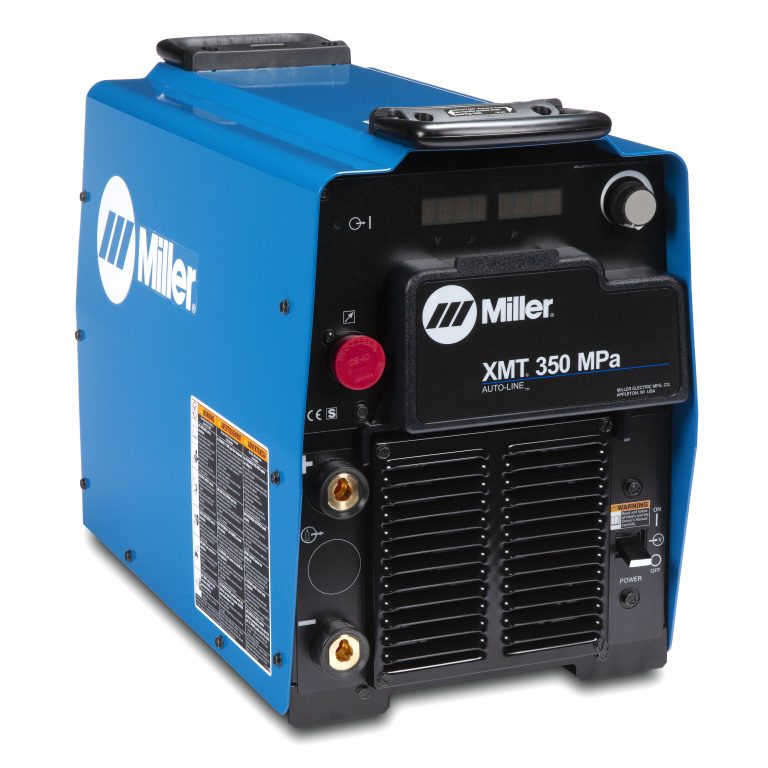

XMT® 350 MPa Multiprocess Welding Machine
Portability and excellent arc performance make the XMT® family the most popular in the industry. The XMT® 350 MPa offers built-in pulse programs for standard steels, high-strength steels and aluminum.
Features:
- Wind Tunnel Technology™ protects electrical components and PC boards from contamination.
- Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
- Lift-Arc™ allows TIG starting without the use of high frequency. Starts the arc without contaminating the weld with tungsten.
- Adaptive Hot Start™ increases the output amperage at the start of the weld if necessary, reducing electrode sticking.
- Process selector switch reduces the number of control setup combi nations without reducing any features.
- Auto Remote Sense™ enables unit to automatically use remote control if connected to remote control receptacle.
- Large, dual digital meters are easy to view and are presettable to ease setting weld output.
- Auto-Line™ power management technology allows for any input voltage hookup (230–575 V) with no manual linking required, providing convenience in any job setting. Ideal solution for dirty or unreliable input power.
- Built-in pulsed MIG capabilities
- Advanced arc control enables an improved pulse welding arc. The operator has more control over puddle and bead characteristics using SharpArc. In addition, the unit provides a more robust and stable arc at very low arc length, reducing heat input, and providing the ability to weld on a wider range of material thickness.
- SharpArc® controls the arc in pulsed MIG mode and gives total control over the arc cone shape, puddle fluidity and bead profile.
Title: XMT® 350 CC/CV
Industries Interests: Construction
Shipbuilding
Railroad
Truck/trailer manufacturing
Fabrication
Repair shops
Rental fleets
Power generation plants
Weldable Metals: Thin to thick, All materials, 0,8-1.6 mm solid, Cored wires
Input Voltage: 230 – 575 V
Input Phase: 3-phase power
Input Hz: 50/60 Hz
Amperage Range: 5–425 A
Rated Output: 275 A at 100% duty cycle, 350 A at 60% duty cycle
Max Open Circuit Voltage: 75 VDC
Weld Output: CC/CV
Net Width: 318 mm (12.5 in.)
Net Height: 432 mm (17 in.)
Net Length: 610 mm (24 in.)
Net Weight: 36.3 kg (80 lb.) without aux. pwr. 43 kg (94.8 lb.) with aux. pwr.
Warranty: 3 Years Miller’s True Blue Warranty
