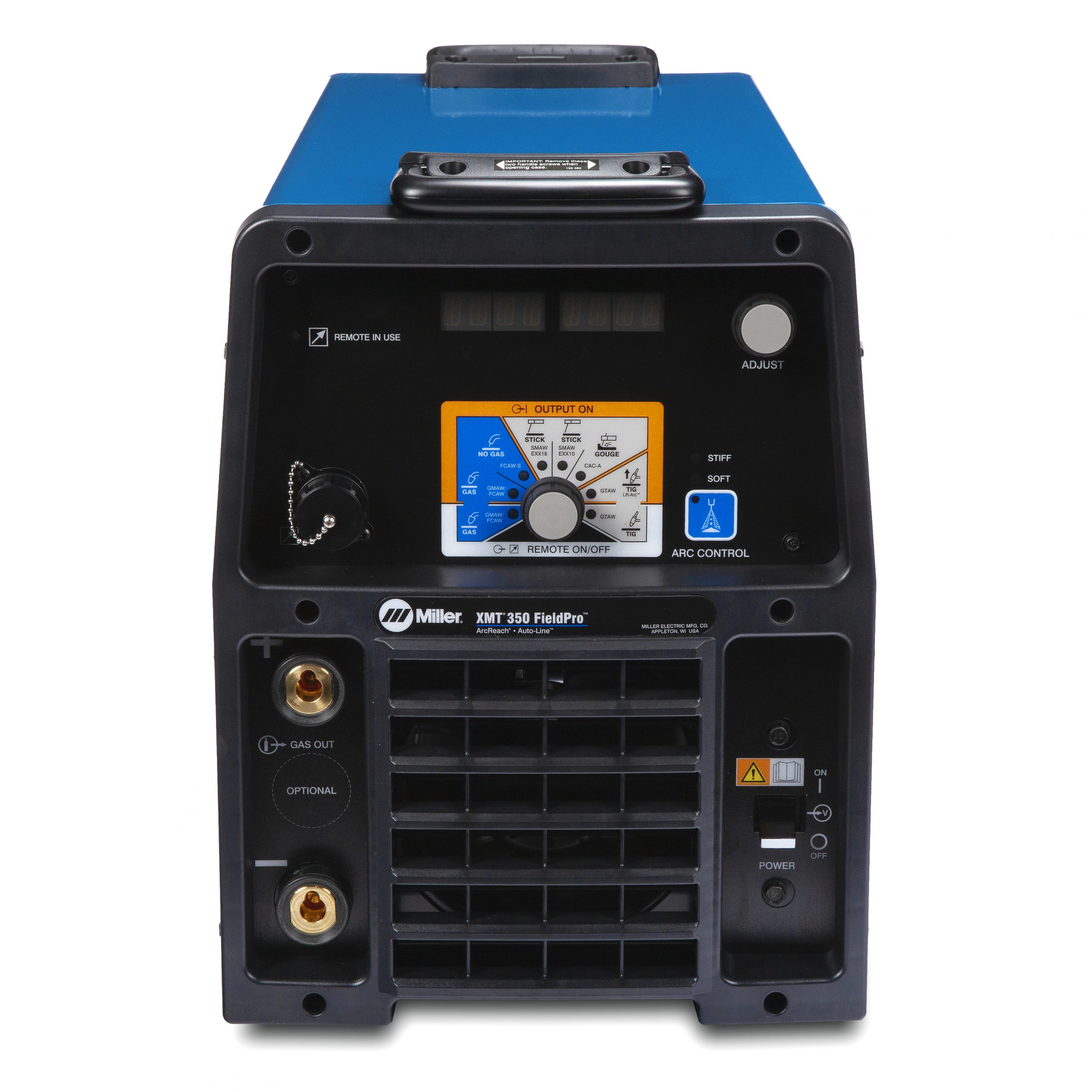

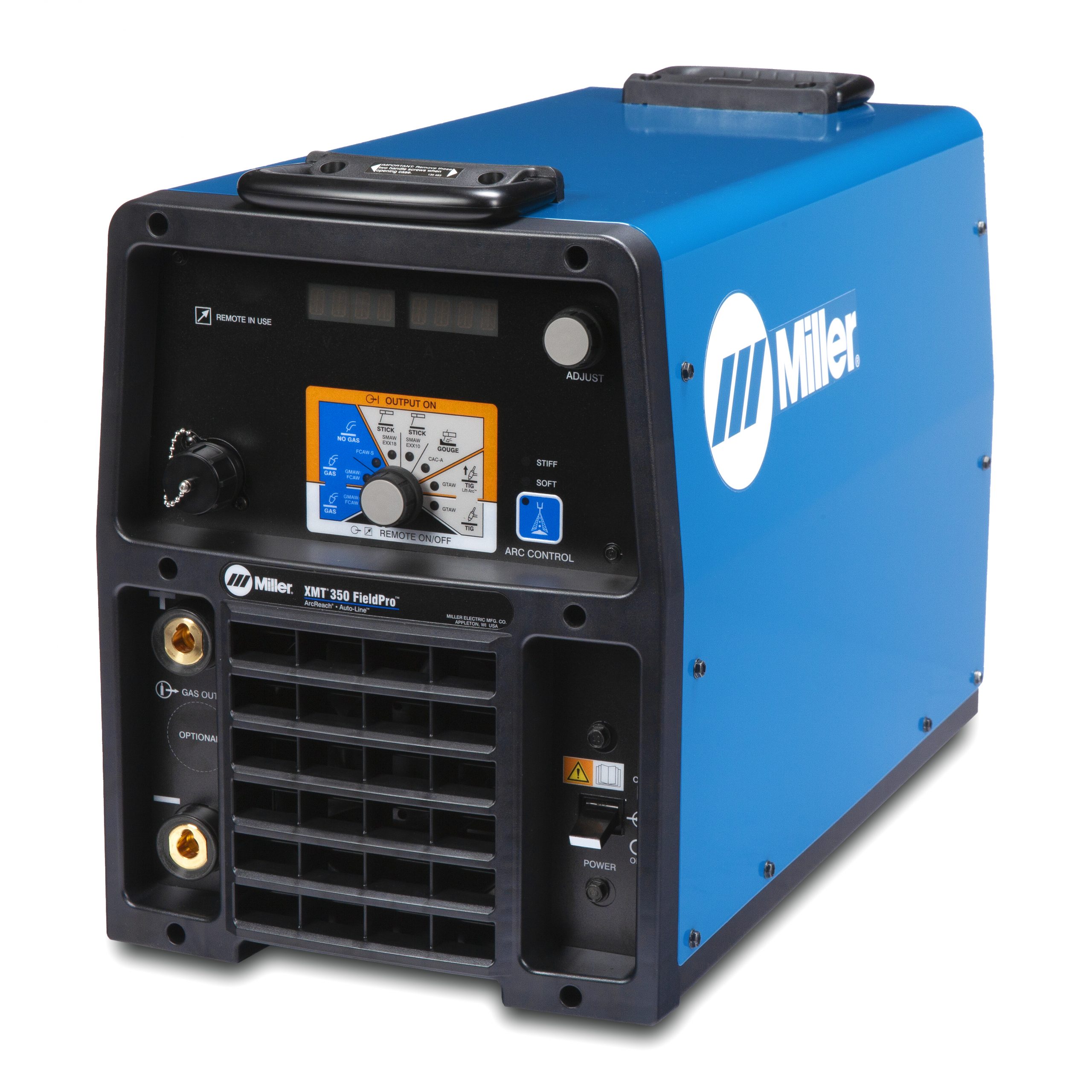

XMT® 350 FieldPro™ Multiprocess Welding Machine
The XMT® 350 FieldPro™ with the game-changing Arc Reach technology is the ideal work horse for any field application. The system offers unrivaled reach between the wire feeder and the power source of up to 100 meters.
FEATURES:
- Cable Length Compensation (CLC™) ensures voltage an operator sets is voltage they get. CLC automatically adjusts voltage based on weld cable length, even hundreds of feet away from the power source.
- Regulated Metal Deposition (RMD®) and pulsed MIG* are fully supported, enabling operators to use these advanced processes in the field for faster, more efficient welds.
- Maximize fleet compatibility and get the benefits of ArcReach when you pair XMT 350 FieldPro welders and ArcReach feeders with other ArcReach compatible products.
- Weld operators can Adjust While Welding (AWW™) to change weld parameters while the arc is on.
- Eliminate expenses related to main taining or replacing easily damaged control cords Weld cables are used to communicate weld parameters between the wire feeder and power source.
- Decrease trip or fall injuries ArcReach technology allows weld operators to make parameter changes at the wire feeder/remote instead of having to travel through multistory and cluttered jobsites back to the power source.
- Auto-Line Technology For portability and reliability, Auto-Line allows for any input voltage hookup (230–575 V, three-phase) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable input power.
- Auto-Bind automatically establishes an exclusive communication between the power source and the wire feeder, using the existing weld cables upon system power up.
- Wind Tunnel Technology.™ Internal air flow that protects electrical components and PC boards from dirt, dust and debris… greatly improving reliability.
- Process selector switch reduces the number of control setup combinations without reducing any features.
- Infinite arc control available in the stick and wire modes for easier fine-tuning of tough-to-weld materials and out-of-position applications
- True multiprocess system provides conventional stick, TIG, FCAW, and MIG welding as well as the advanced technologies of RMD and pulse.
- Fleet compatibility ArcReach-equipped power sources and wire feeders work with non-ArcReach equipment; however, the complete ArcReach benefit is only realized with the ArcReach system
Title: XMT® 350 FieldPro™
Industries Interests: Construction Shipbuilding Power generation plants Rental fleets
Weldable Metals: Thin to thick, all materials, 0,8-1.6 mm solid, cored wires
Input Voltage: 230 –575 V
Input Phase: 3-phase power
Input Hz: 50 Hz
Amperage Range: 5–425 A
Output Range: 10–38 V, 15–425 A
Rated Output: 350 A at 34 VDC, 60% duty cycle
Max Open Circuit Voltage: 75 VDC
Net Width: 318 mm (12.5 in.)
Net Height: 432 mm (17 in.)
Net Length: 610 mm (24 in.)
Net Weight: 42.2 kg (93 lb.)
Warranty: 3 Years Miller’s True Blue Warranty
