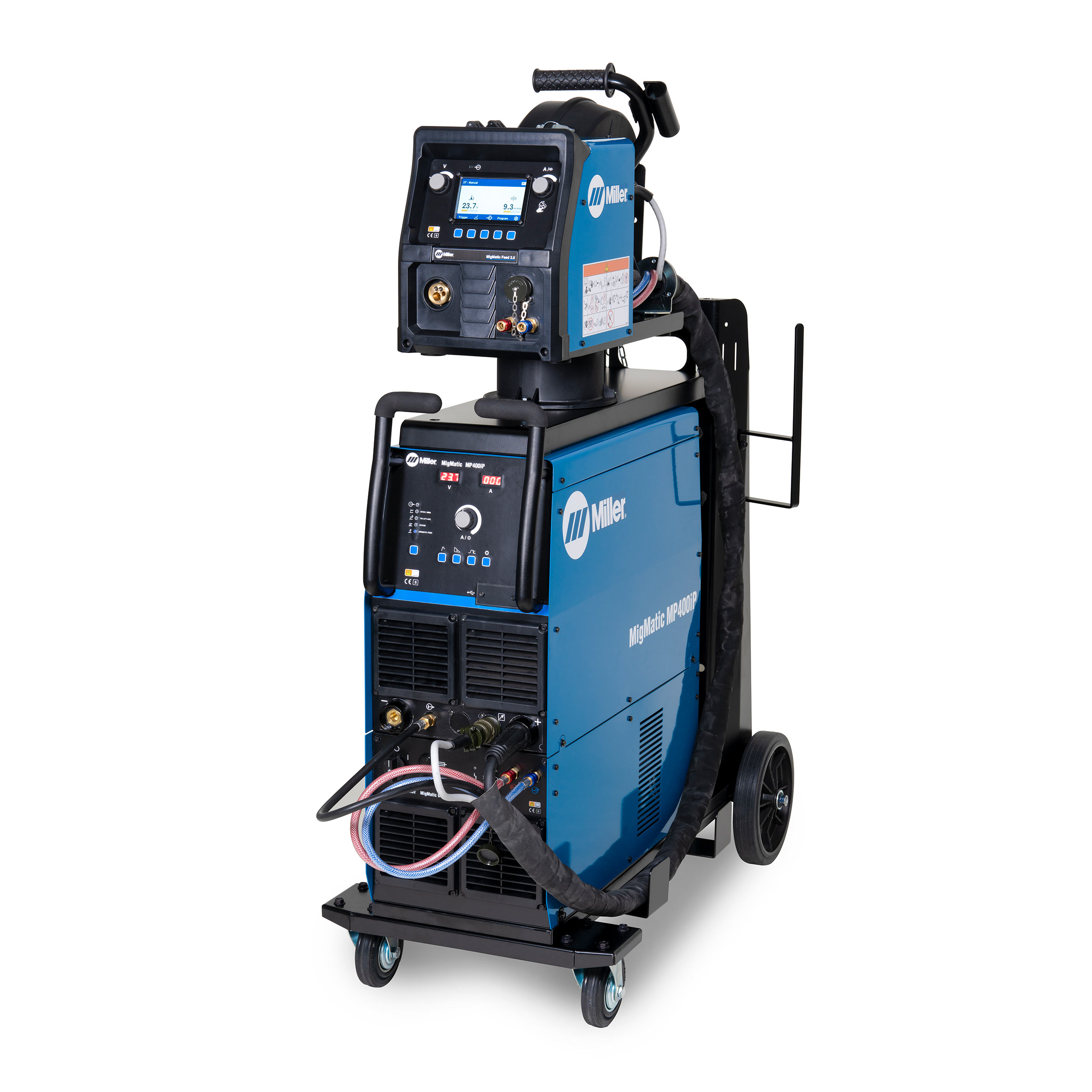

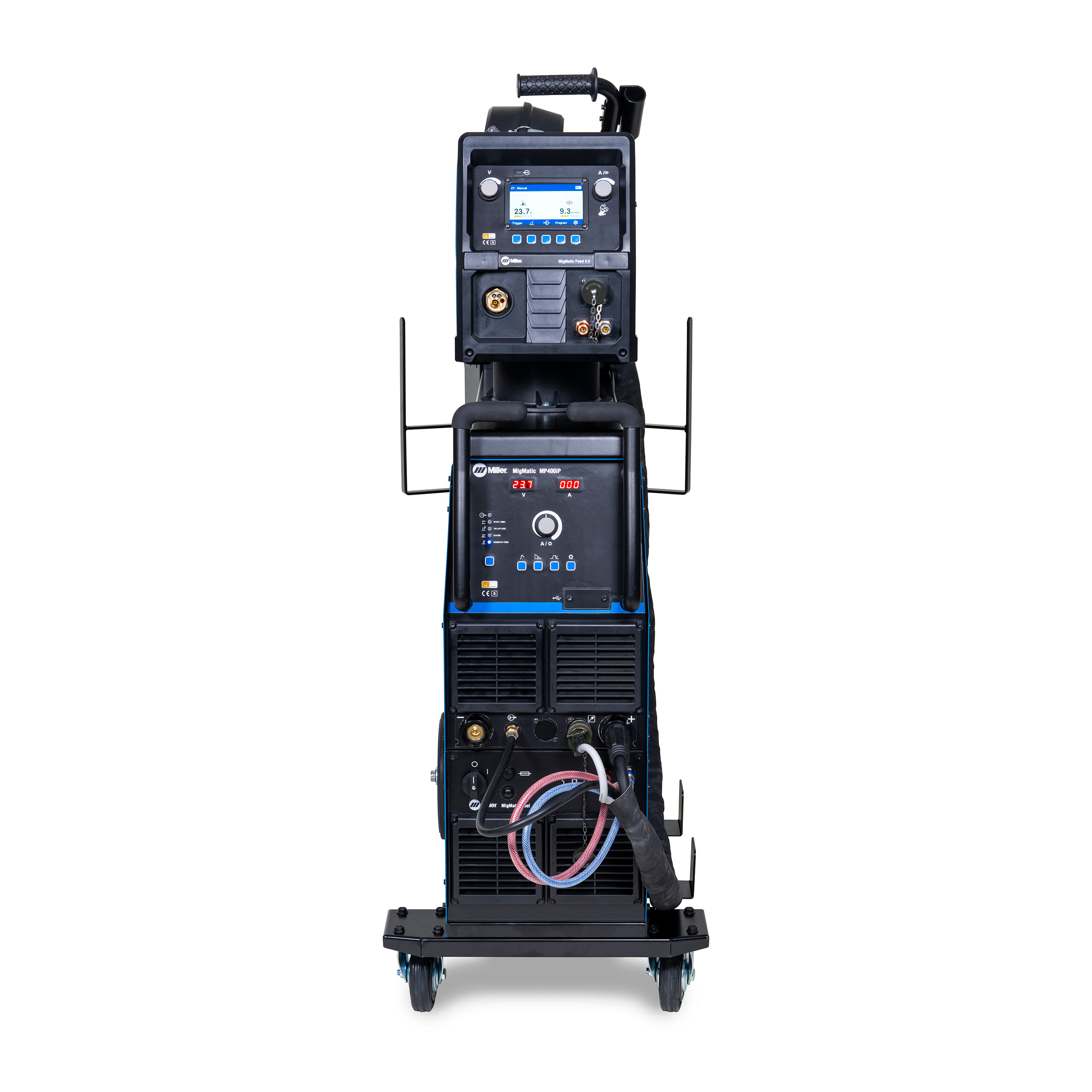

MigMatic® MP S400iP MIG/MAG Welding Machine
Miller MigMatic® MP S400iP synergic Pulsed MIG/MAG System offers full flexibility. All modules are bespoke to the system and designed for trouble free, high productivity welding. Never before has it been so easy and straight forward to achieve excellent welding performance. Enjoy full control at all times.
Features:
- Trigger program switch: Re-call up to 4 preset programs from the torch trigger (any standard MIG torch) for increased productivity on complex objects.
- Multiprocess: A new multiprocess version is now available enabling lift TIG and MMA.
- MigMatic Feed 2.0: A new generation of feeder has been developed to step up the user experience and quality of the MigMatic family.
- Miller robustness: Tested and approved for heavy duty welding under the toughest conditions. Miller goes to extreme measures to ensure trouble free welding in any environment.
- Energy efficient: The Fan-On-Demand™ power source cooling system operates only when needed, reducing the amount of contaminants pulled though the machine. The MigMatic® Cool is controlled and monitored by the power source and runs only when needed, reducing noise and the overall energy use.
- Full synergic Pulse with presets: Synergic lines for all common wire/gas combinations with presets of start/stop parameters for optimal welds.
- Wind Tunnel Technology™ Internal air flow that protects electrical components and PC boards from dirt, dust and debris, greatly improving reliability.
- Ease of use and versatility: New display with a larger size and higher clarity.
Title: MigMatic MP S400iP
Industries Interests: General industrial fabrication
Construction
Railcars
Mobile machinery
Shipbuilding
Weldable Metals: Thin to thick,
All materials,
0,8-1.6 mm solid,
Cored wires
Input Voltage: 400 V
Input Phase: 3 phases
Input Hz: 50/60 Hz
Amperage Range: 15 A – 400 A
Max. Output Amperage: 440 A
Rated Output: 400 A, 34 V at 100% duty cycle
Max Open Circuit Voltage: 70 VDC
Net Width: 305 mm
Net Height: 530 mm
Net Length: 730 mm
Net Weight: 53 kg
Warranty: 3 Years Miller’s True Blue Warranty
