MILLER MIGMATIC 300IP MIG/MAG WELDING MACHINE

SKU: 059015052

£2,902.29

3482.75 (Inc VAT)

  • Product Description
  • Technical Specification
  • Package Includes

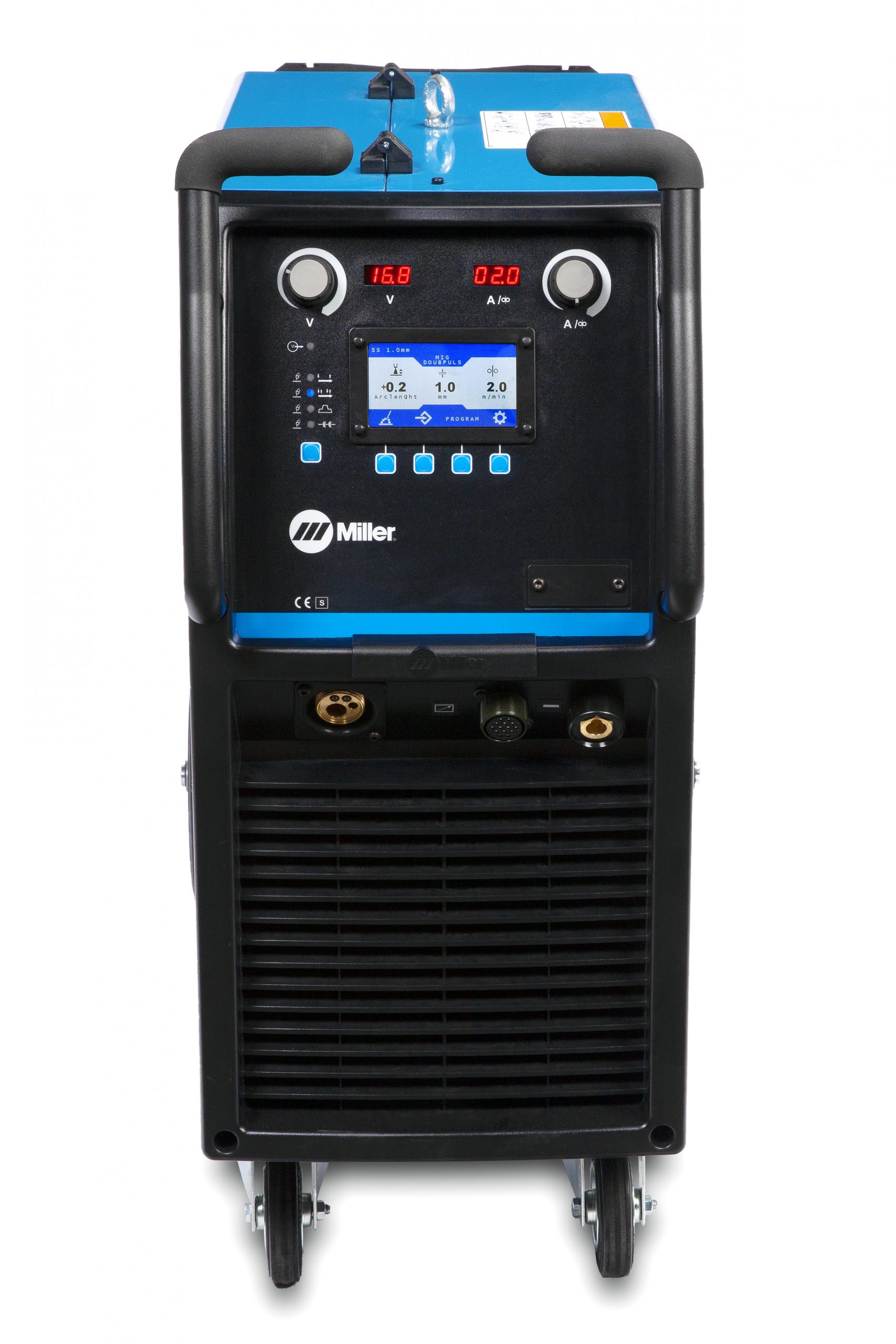

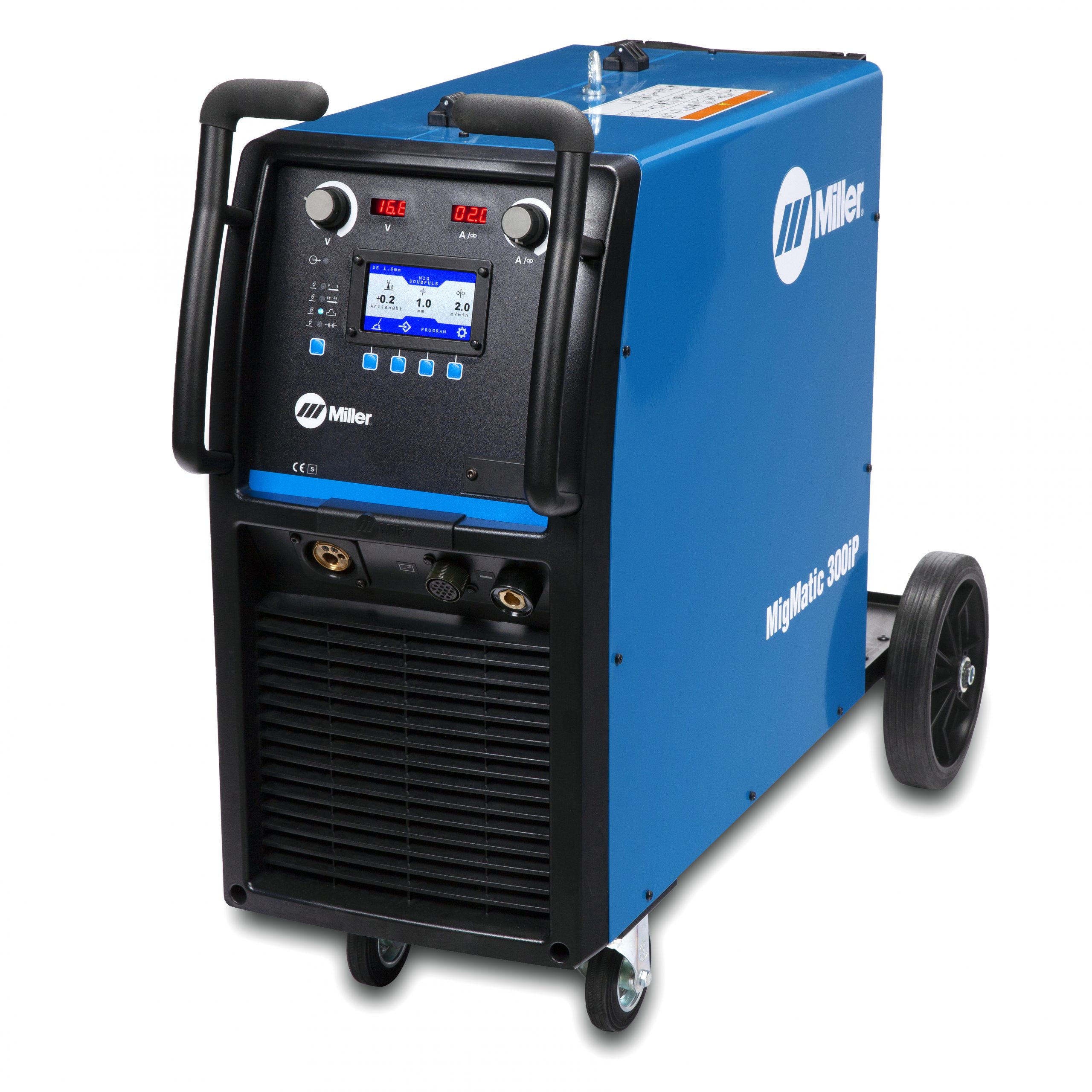

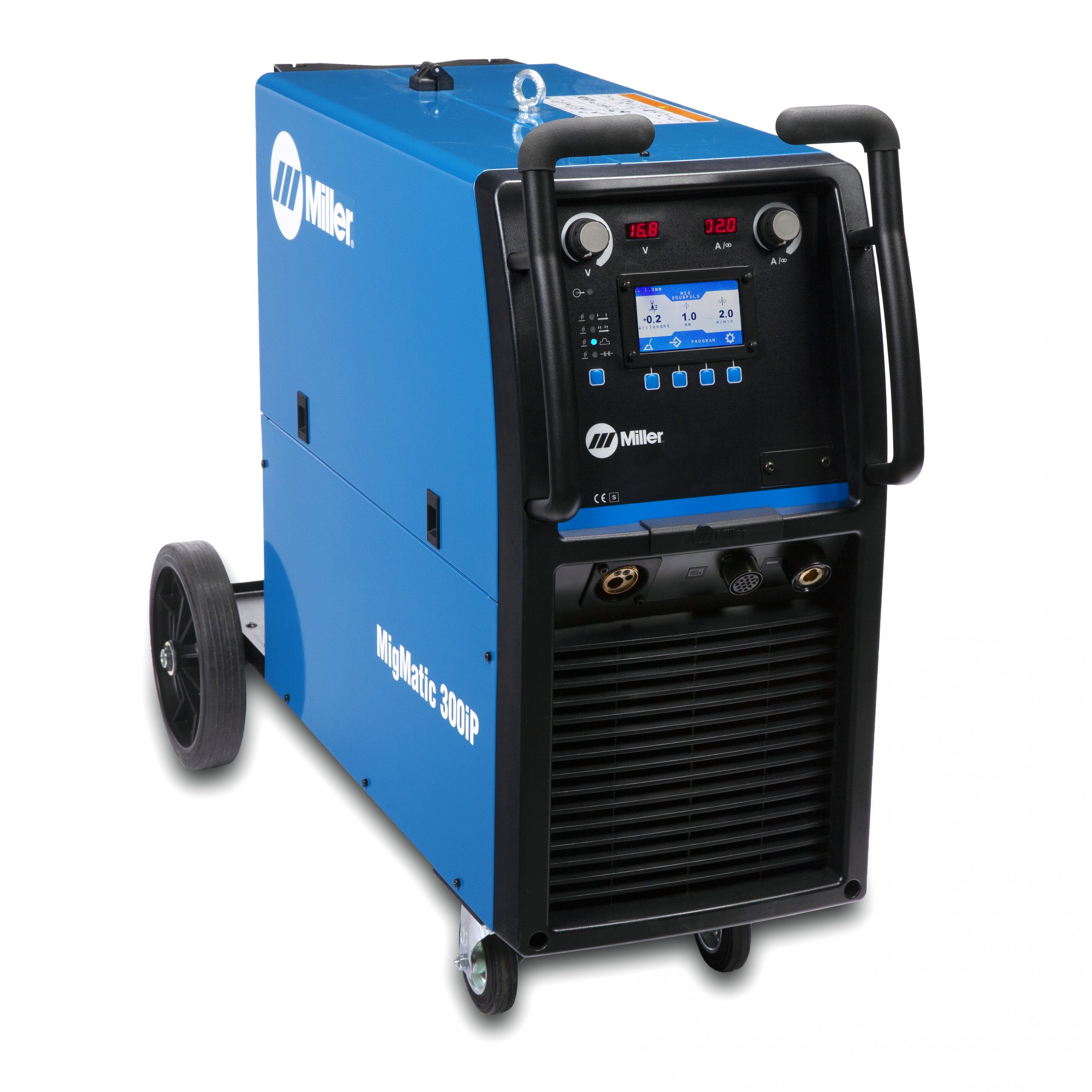

MigMatic® 300iP MIG/MAG Welding Machine

Miller® MigMatic® 300iP Synergic Pulsed MIG/MAG System featuring a heavy duty drive mechanism capable of consistent and precise wire feeding regardless of your choice of wire. The Pulse MIG/MAG welding capability makes the system ideal for aluminium applications and for thin plate mild and stainless steel welding. The user interface is extremely easy to use and never before has it been so quick and straight forward to achieve excellent welding performance.



Features:

  • Trigger program switch: Re-call up to 4 preset programs from the torch trigger (any standard MIG torch) for increased productivity on complex objects.
  • Miller robustness: Tested and approved for heavy duty welding under the toughest conditions. Miller goes to extreme measures to ensure trouble free welding in any environment.
  • Heavy duty wire drive mechanism: The 4-roll drive system will ensure trouble free wire feeding.
  • Energy efficient: The energy saving Fan-On-Demand™ power source cooling system operates only when needed, reducing noise and the amount of contaminants pulled though the machine.
  • Full synergic Pulse with presets: Synergic lines for all common wire/gas combinations with presets of start/stop parameters for optimal welds.
  • Ease of use and versatility: Large intuitive LCD panel for quick and precise setting of advanced weld parameters.
  • MigMatic® Compact Series https://www.youtube.com/watch?v=vC8egPAGYGU
  • MigMatic® Compact Series Watch the video in French, Swedish, German or Polish. More languages coming soon!

Title: MigMatic 300iP

Industries Interests: General fabrication

                                   Car repair

                                   Training schools

                                   Agricultural equipment

                                   Repair and maintenance

Weldable Metals: Thin to thick,

                             All materials,

                             0,8-1.2 mm solid,

                             Cored wires

Input Voltage: 400 V

Input Phase: 3 phases

Input Hz: 50/60 Hz

Amperage Range: 15 A – 300 A

Max. Output Amperage: 330 A

Rated Output: 300 A, 29 V at 40% duty cycle

Max Open Circuit Voltage: 70 VDC

Net Width: 470 mm

Net Height: 830 mm

Net Length: 1070 mm

Net Weight: 57 kg

Warranty: 3 Years Miller’s True Blue Warranty

  • MigMatic 300ip
  • Return Cable kit
  • Drive rolls for 1.0-1.2mm wire
  • MB36 3MTR TORCH (SKU: 12TO093)
